Home Energy Storage Solutions

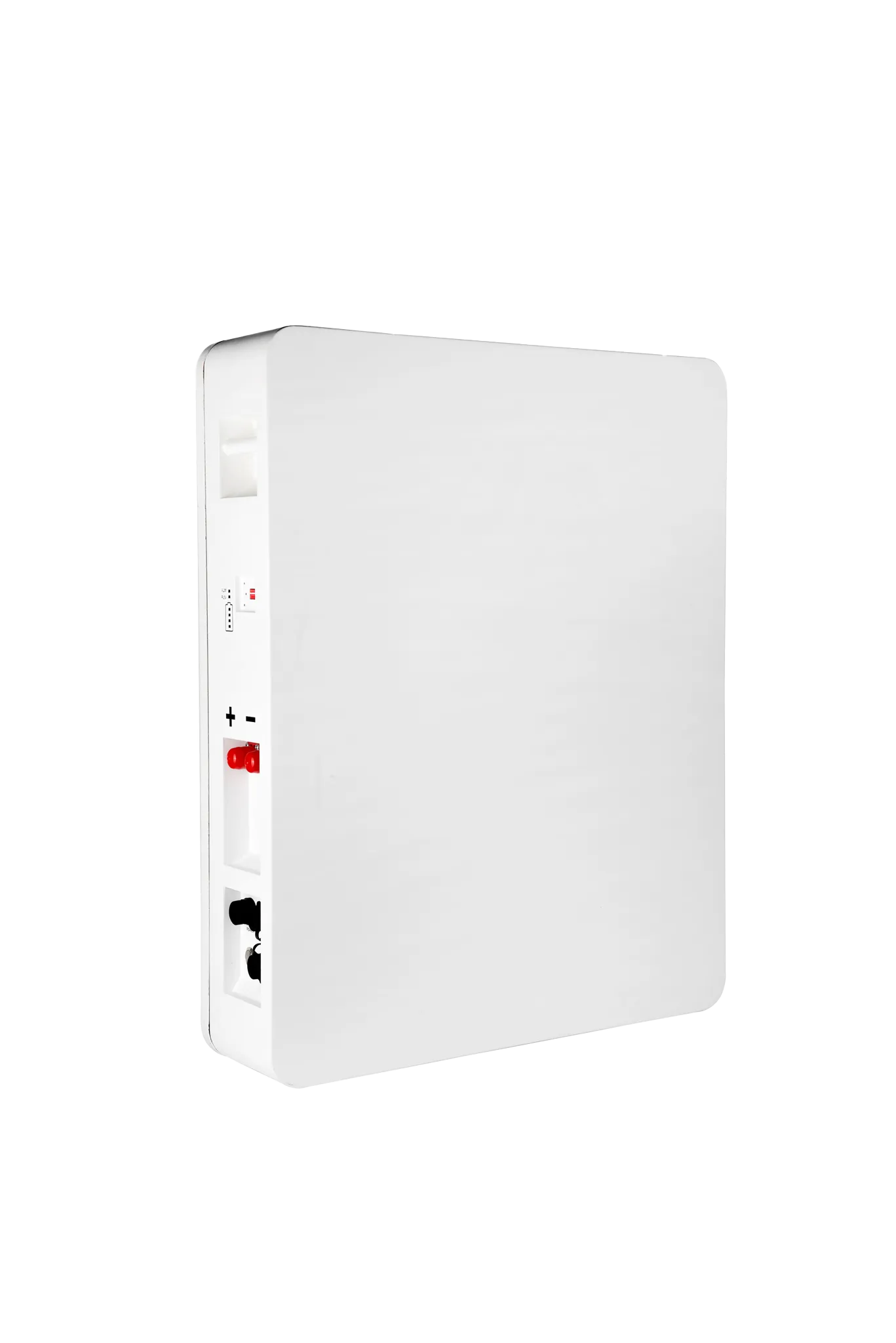

Home energy storage systems deliver efficient and safe energy storage solutions, available in integrated and wall-mounted configurations with a cycle life of 4,000-5,000 cycles.
Key Features
-
Modular Design: Compatible with photovoltaic (PV) and grid power inputs.
-
Core Functions:
-
Enables household energy self-sufficiency.
-
Optimizes energy costs through peak/off-peak arbitrage.
-
Provides emergency backup power.
-
-
Smart Integration: Enhances energy management intelligence and energy efficiency for modern homes.
System Voltage: 409.6 V
Battery Energy: 300 Wh
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Weight: 280.5 kg
Dimensions: 480 × 132 × 586 mm
System Voltage: 409.6 V
Rated Capacity: 50Ah
Grid Connection: Off-grid / Hybrid
Type: Split-type (Modular)
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Weight: 280.5 kg
Dimensions: 480 × 132 × 586 mm

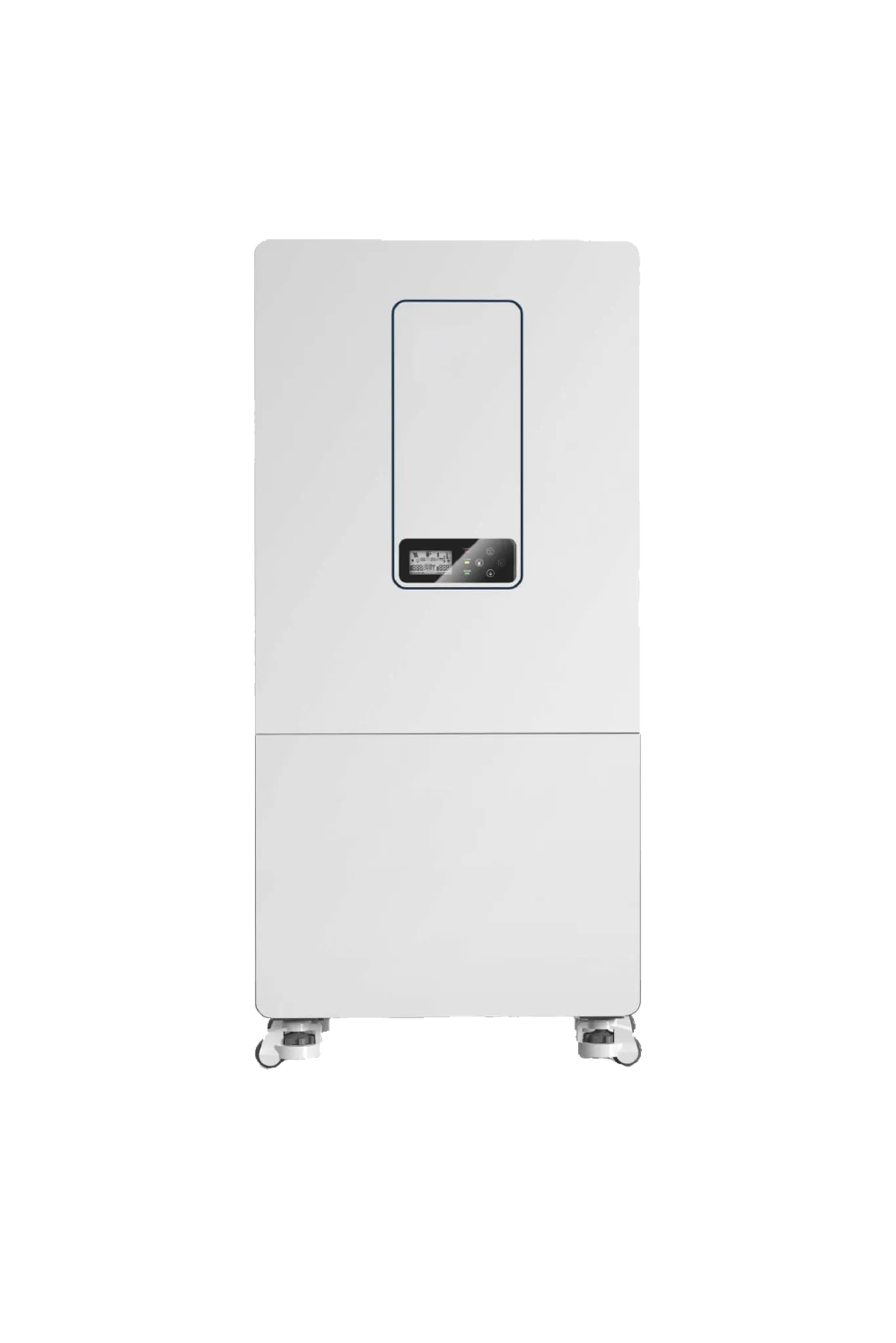

System Voltage: 48 V
Rated Capacity: 200Ah
Grid Connection: Off-grid / Hybrid
Type: All-in-One (Integrated)
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Weight: 85 kg
Dimensions: 480 × 280 × 1071 mm

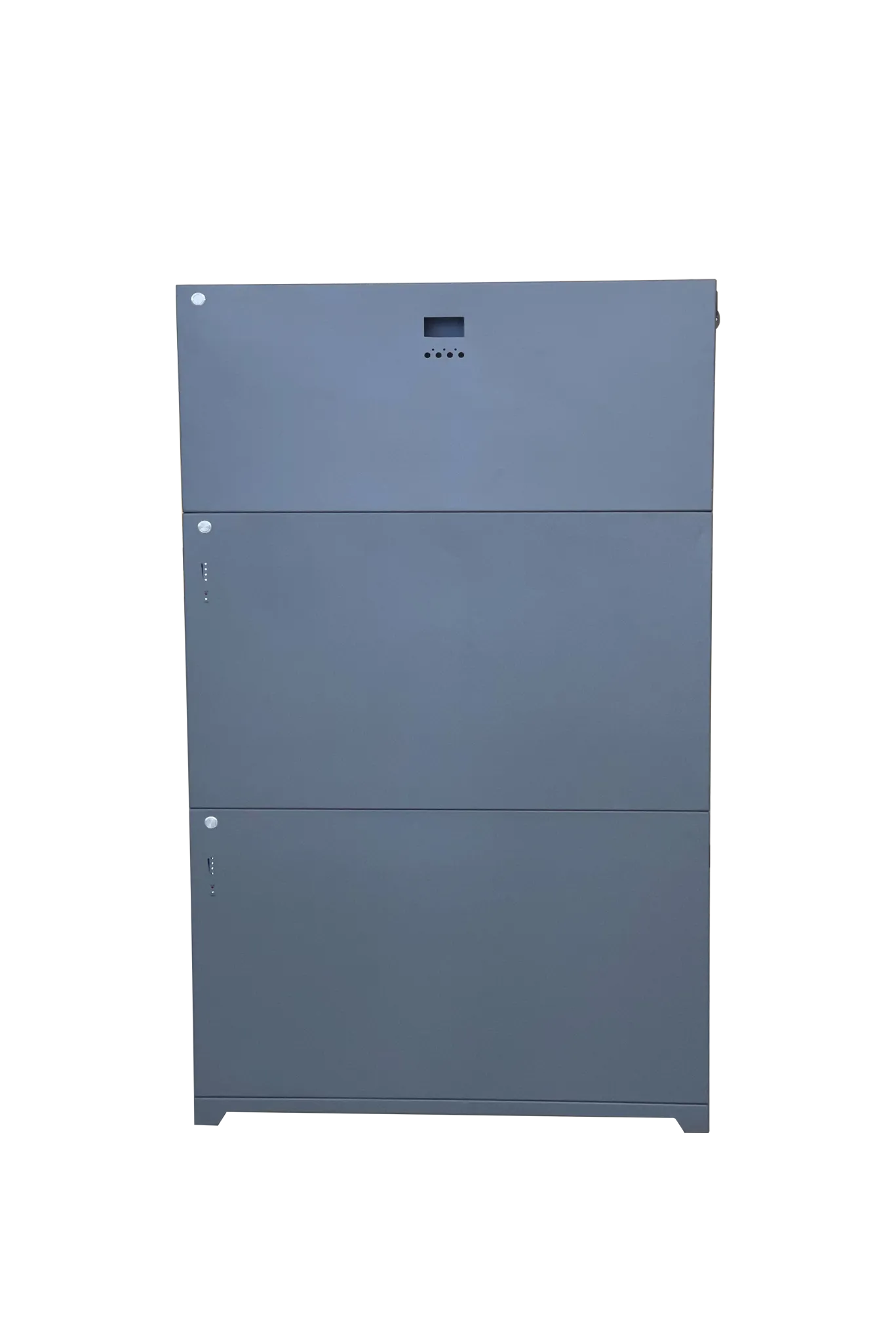

System Voltage: 51.2 V
Rated Capacity: 200Ah
Grid Connection: Off-grid / Hybrid
Type: All-in-One (Integrated)
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Weight: 84 kg
Dimensions: 842 × 505 × 110 mm

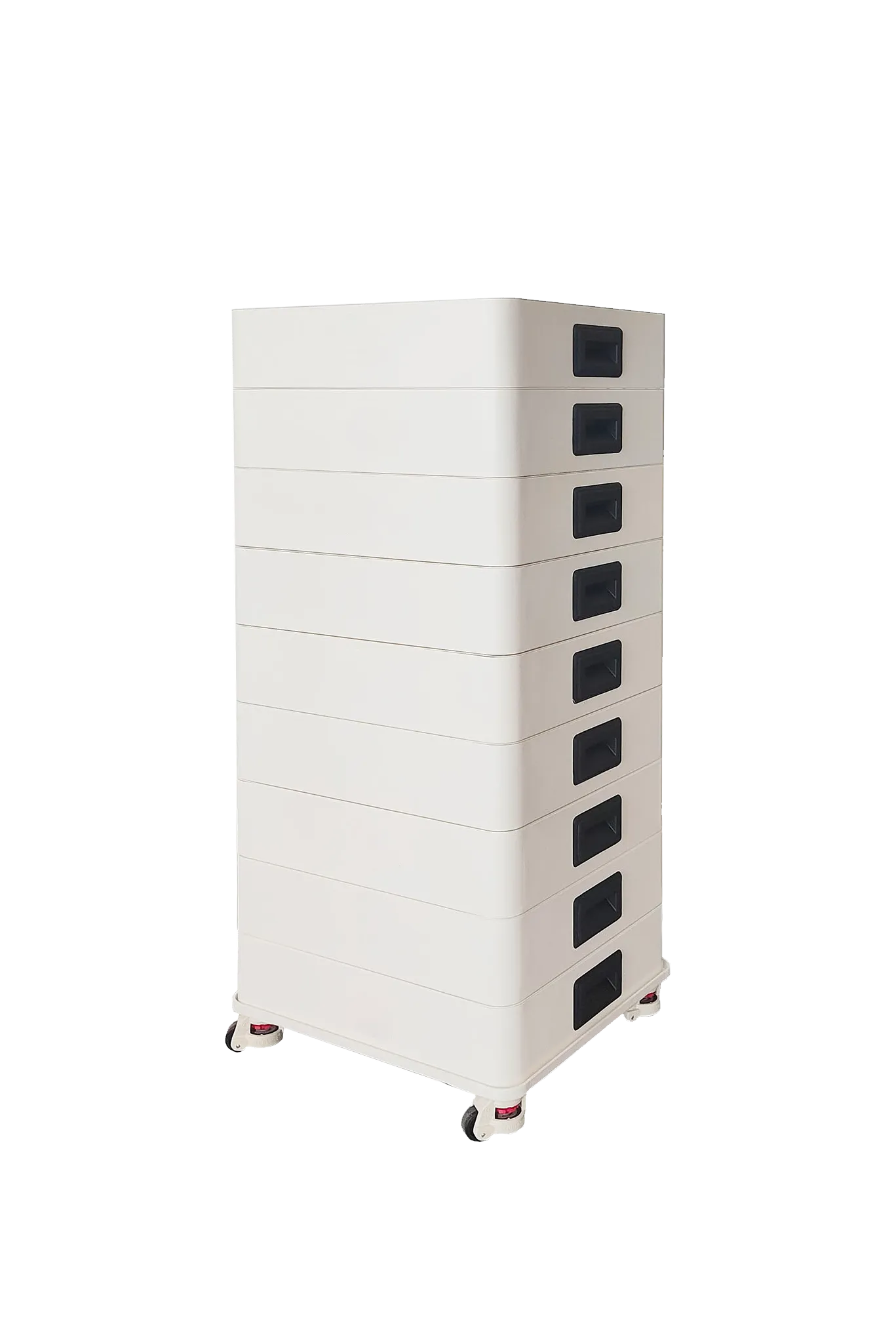

System Voltage: 51.2 V
Rated Capacity: 100Ah
Grid Connection: Off-grid / Hybrid
Type: Split-type (Modular)
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Weight: 50 kg
Dimensions: 750 × 500 × 200 mm
Applications
LiFePO4 battery banks with 10,000+ deep-cycle durability, storing solar energy for household power with military-grade thermal stability.

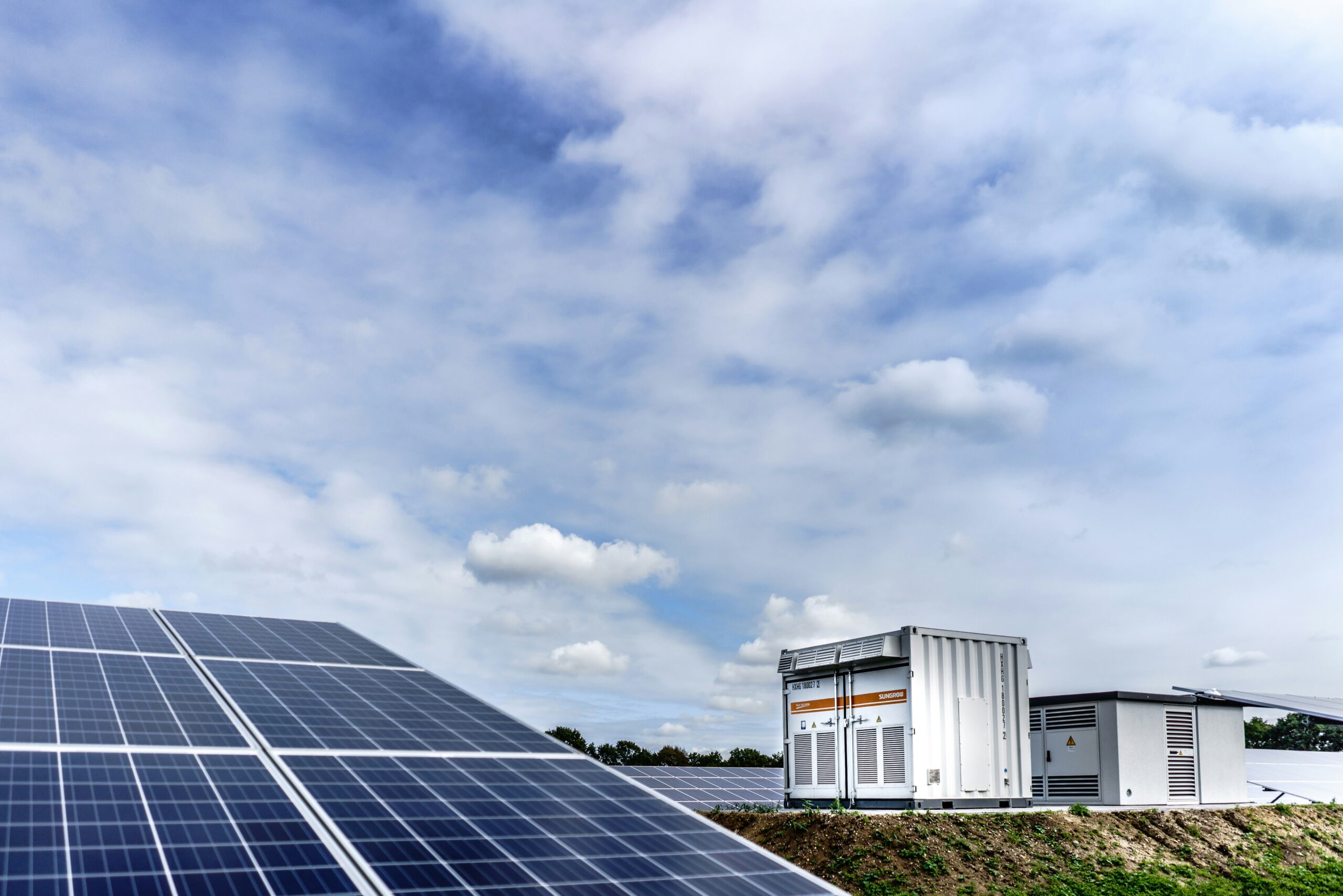

High-temperature tolerant lithium systems enabling maintenance-free energy autonomy for islands, blending solar/wind/diesel with 99.9% uptime.

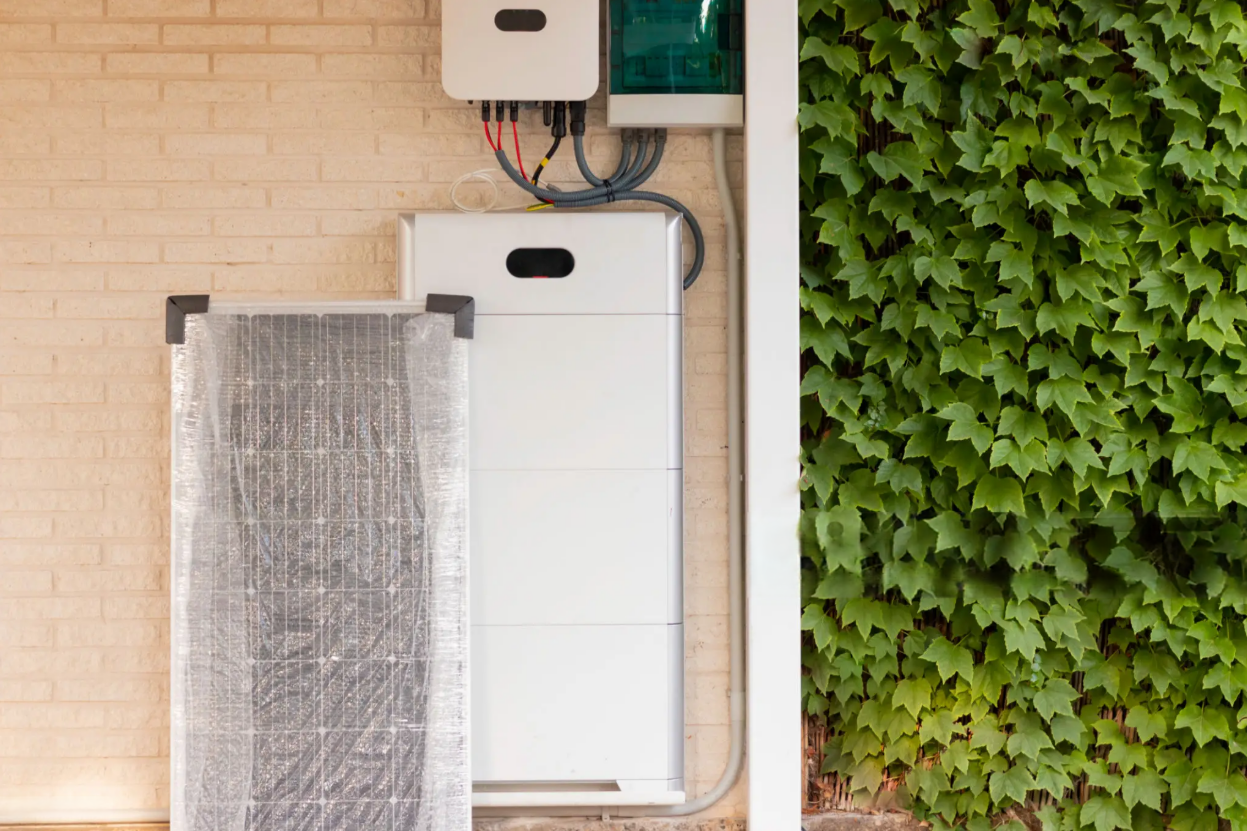

LiFePO4 guards the 0ms grid-to-backup transition, protecting medical devices, routers and household essentials in the event of an unexpected power outage.
The two-way battery ecosystem transforms electric vehicles into mobile power hubs that dynamically distribute energy between driving, home backup and grid arbitrage.
Ensures reliable backup power for laptops, printers, and internet devices during unexpected outages, supporting uninterrupted remote work and online learning.
During power outages, provides emergency power to kitchen appliances like refrigerators, microwaves, and coffee makers, maintaining daily kitchen convenience.
FREE DESIGN
Customized exclusive battery plans! Professional engineers plan battery programs one-on-one.
Maximize Drone Effect with Our Tailored Battery Solutions
Explore Herewin Factory: The Source of Quality
Founded in 2019, Shenzhen Jarwin Time Technology Co., Ltd. is backed by a founding and operational team with over 20 years of extensive experience in the battery industry. It specializes in developing and producing high-performance lithium-ion polymer batteries.
Gain a comprehensive insight into who we are and what we stand for. By exploring the meticulous precision of our
production lines, the efficient management of our factories, and the genuine feedback from our satisfied customers,
you’ll see how we ensure excellence at every step of the process
Different Services For Clients With Different Patterns
FOR OFFLINE CLIENTS
Flexible Delivery Time
Reliable delivery schedules and warehousing support.
High Cost-Effectiveness
Competitive pricing to maximize overall value.
Wide Product Selection
Diverse options to cater to all market segments.
FOR ONLINE CLIENTS
Low MOQ
Flexible MOQ with mixed product options.
Custom Logo
Personalized logo customization for small batches.
One-Stop Marketing Package
Provide quality images, videos to enhance sales revenue.
FOR BRAND CLIENTS
Exclusive Regional Rights
Provide all of herewin's resources and capabilities
R&D Resources
Custom sample within 7 days with R&D capabilities.
Fast Delivery
Efficient production and ship within 25 days at the fastest.
Production Flow of Home Energy Battery

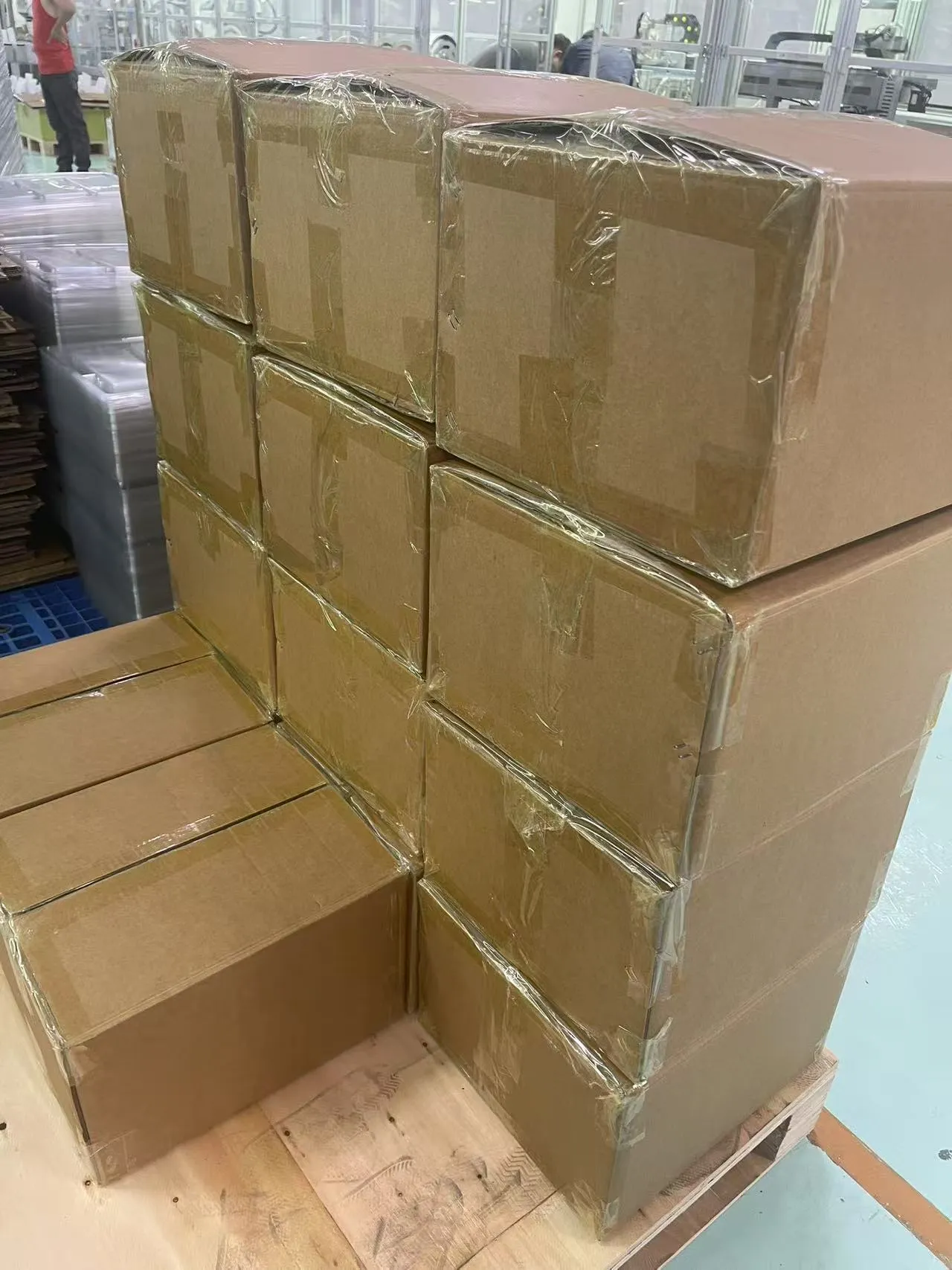

Open packaging, sort components.

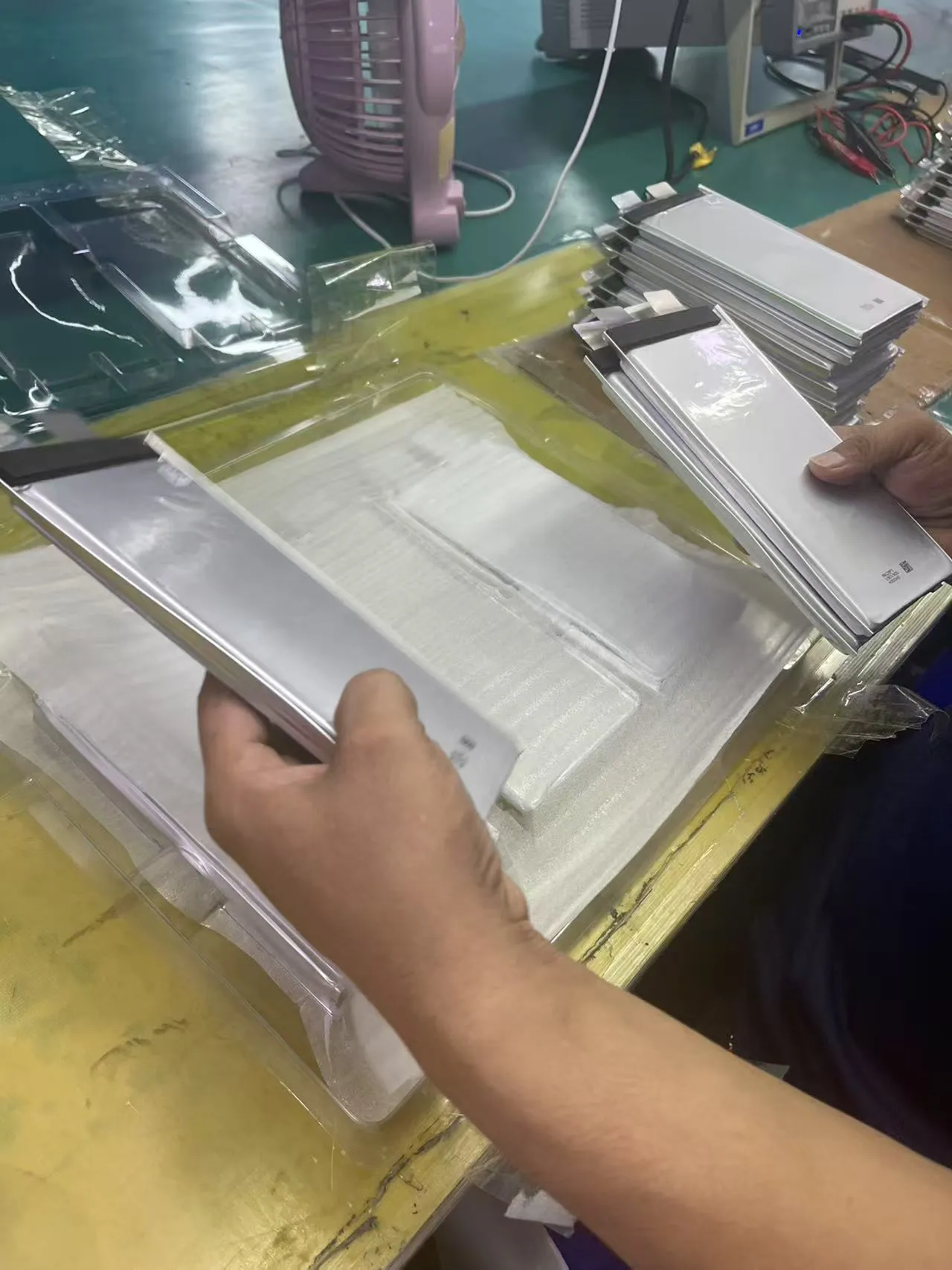

Inspect grouped cells for defects: leakage, scratches, dents, punctures, swelling.

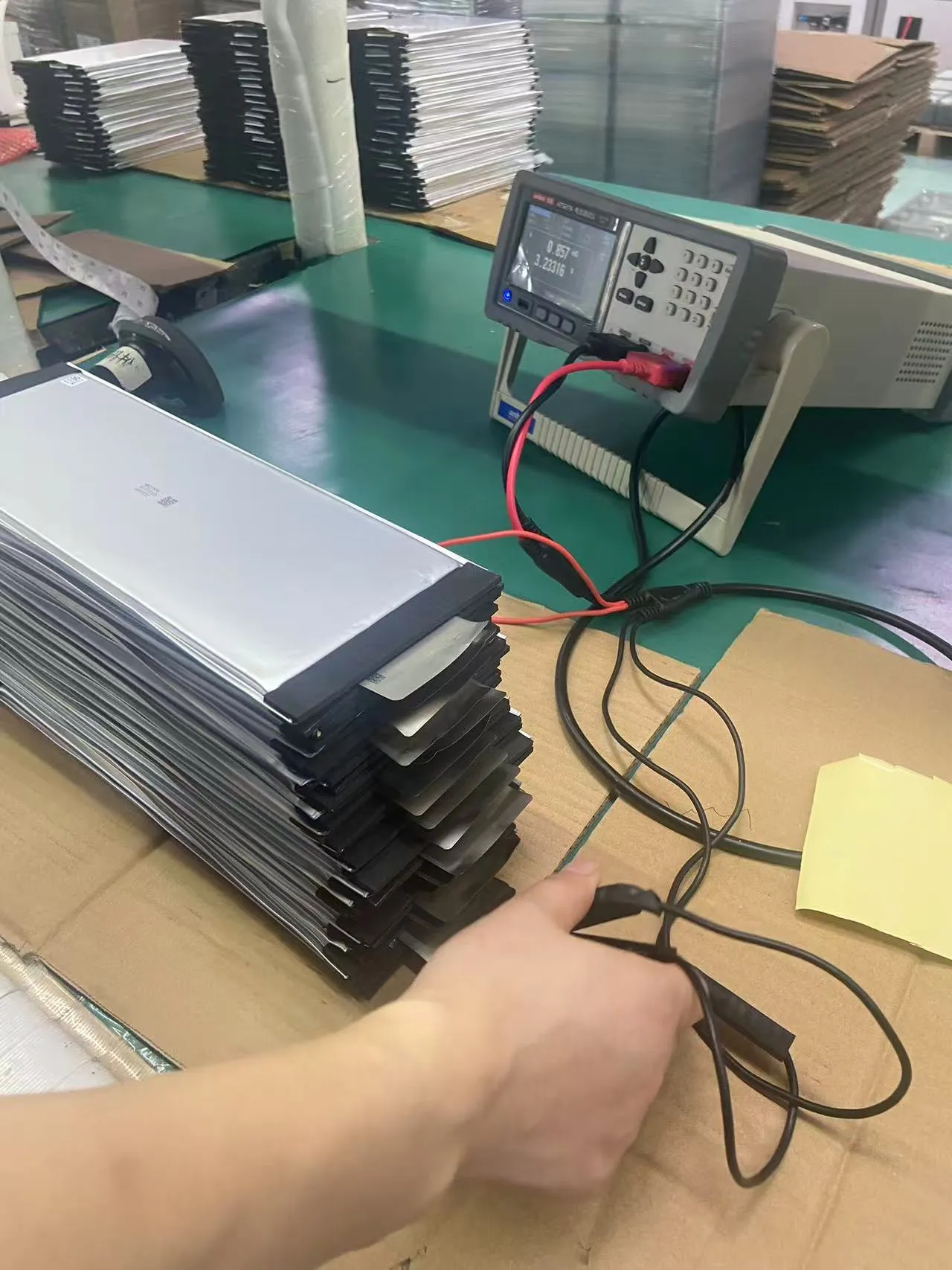

Test cell voltage and internal resistance; rebalance cells with excessive voltage deviations.
Punch holes in cell tabs using a stamping machine.

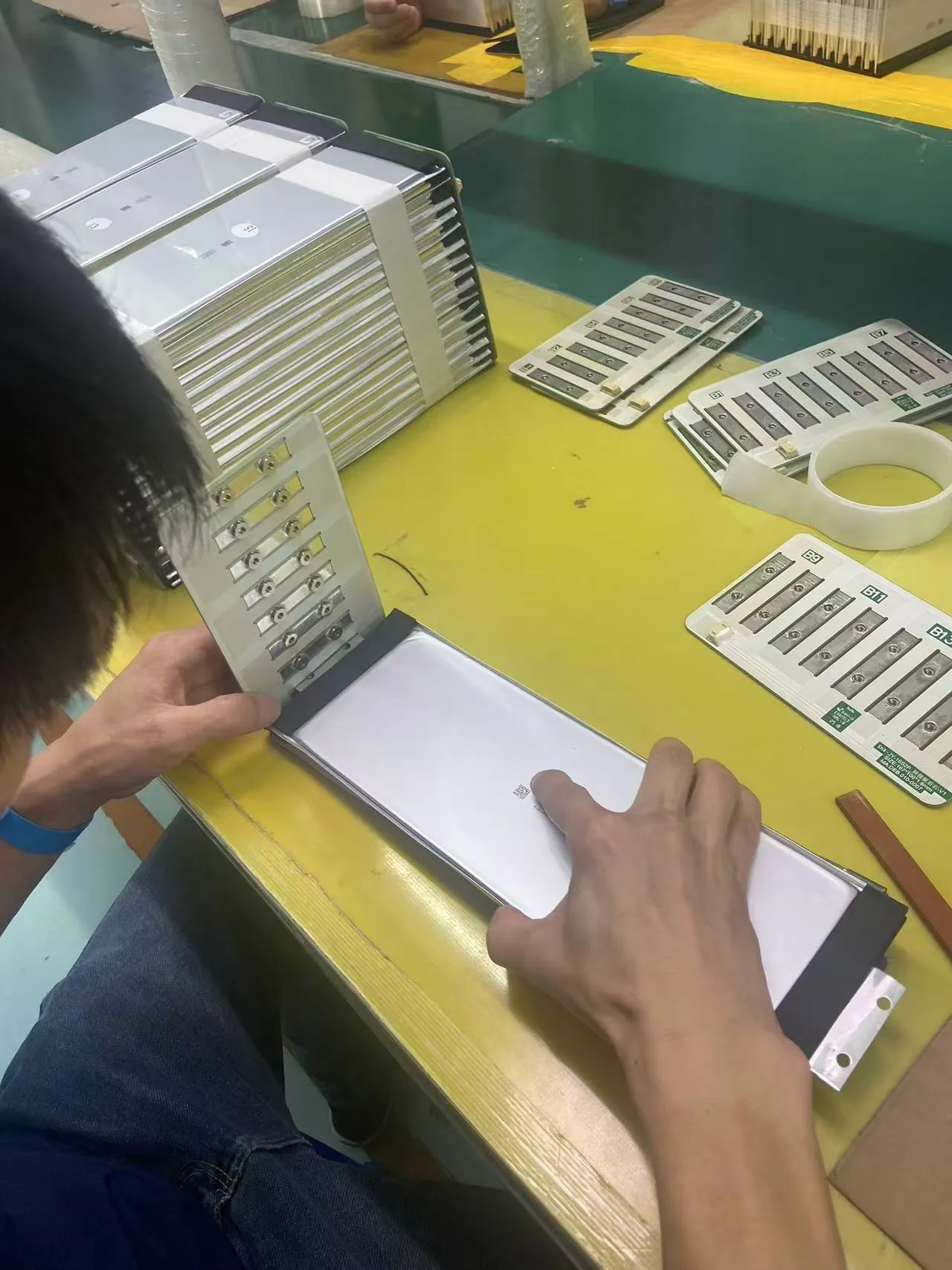

Mount cells onto adapter boards per specs, secure tightly with fiber tape.

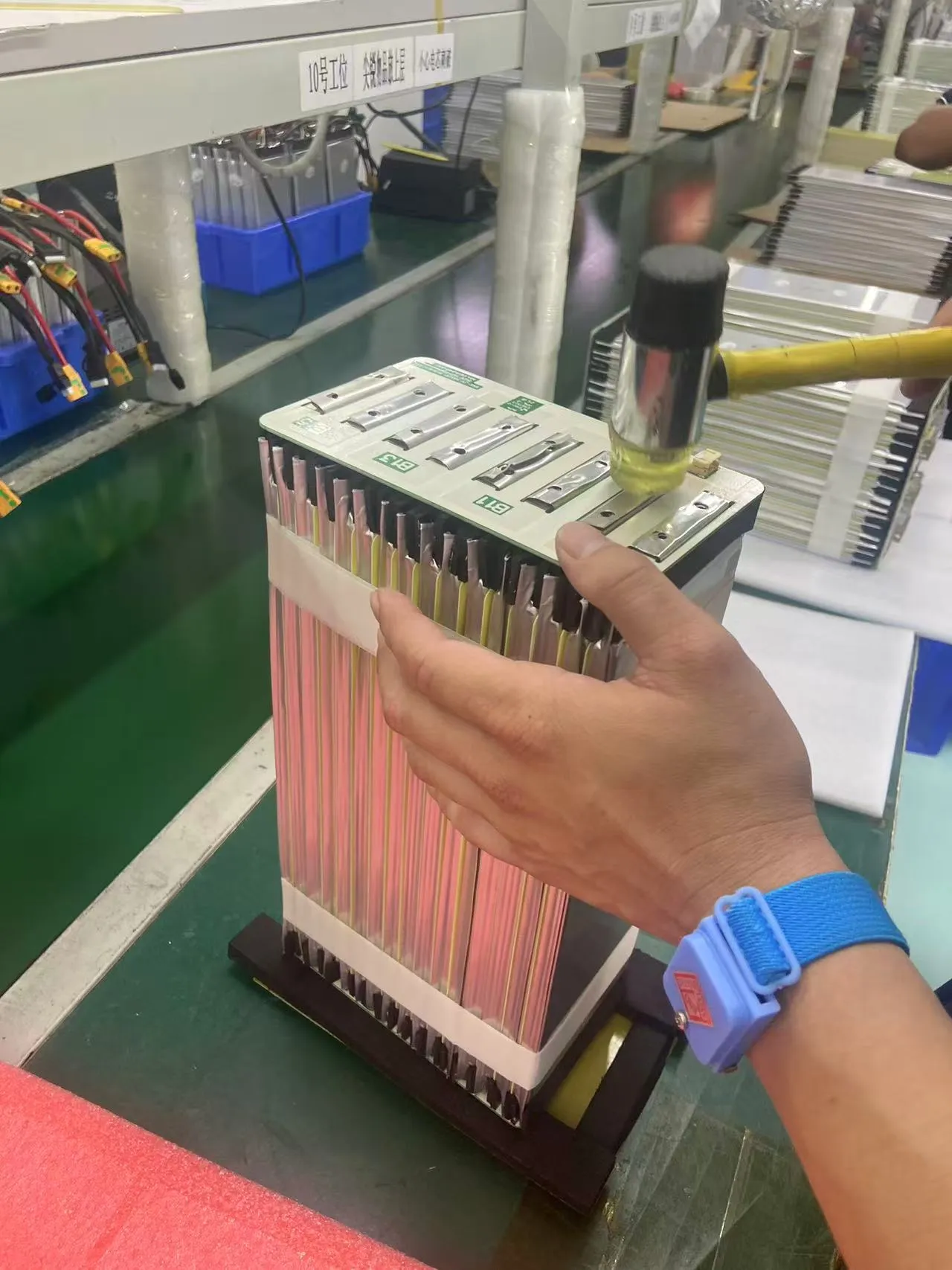

Fold tabs in half with a rubber mallet and align holes with PCB board positions.
Secure aluminum plates to adapter boards with screws; verify torque.

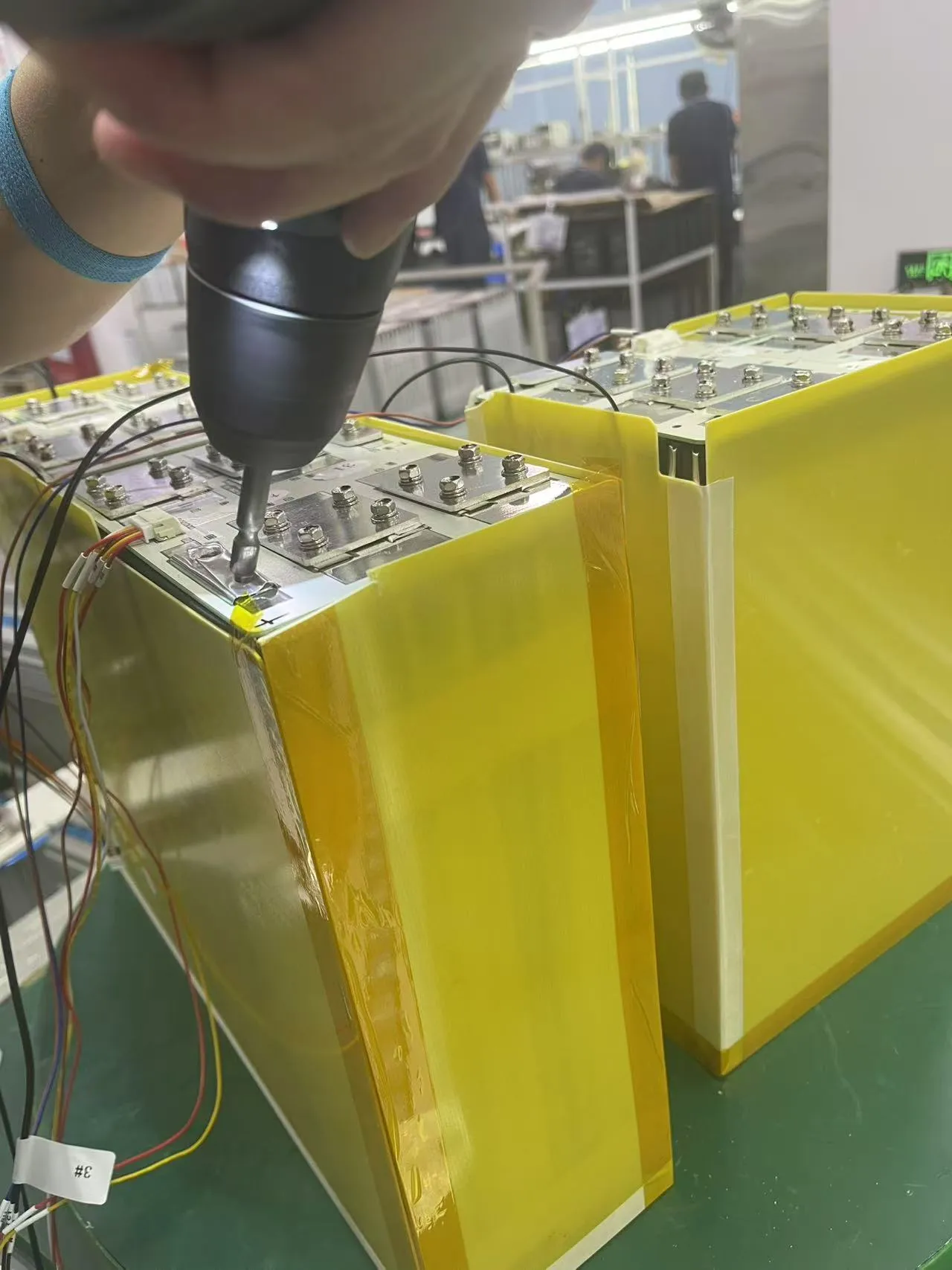

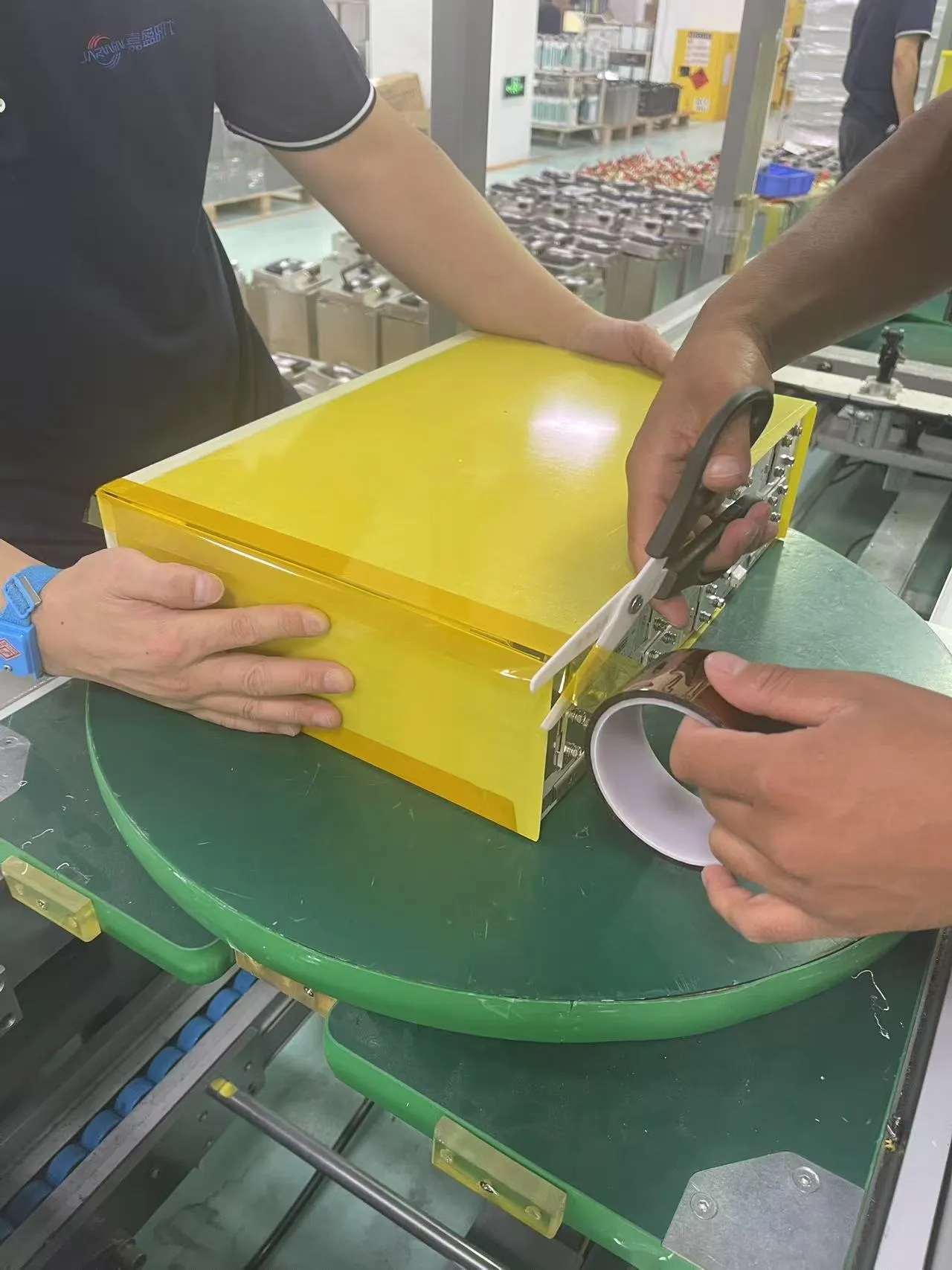

Wrap battery module with fiberboard and seal edges with fiber tape.

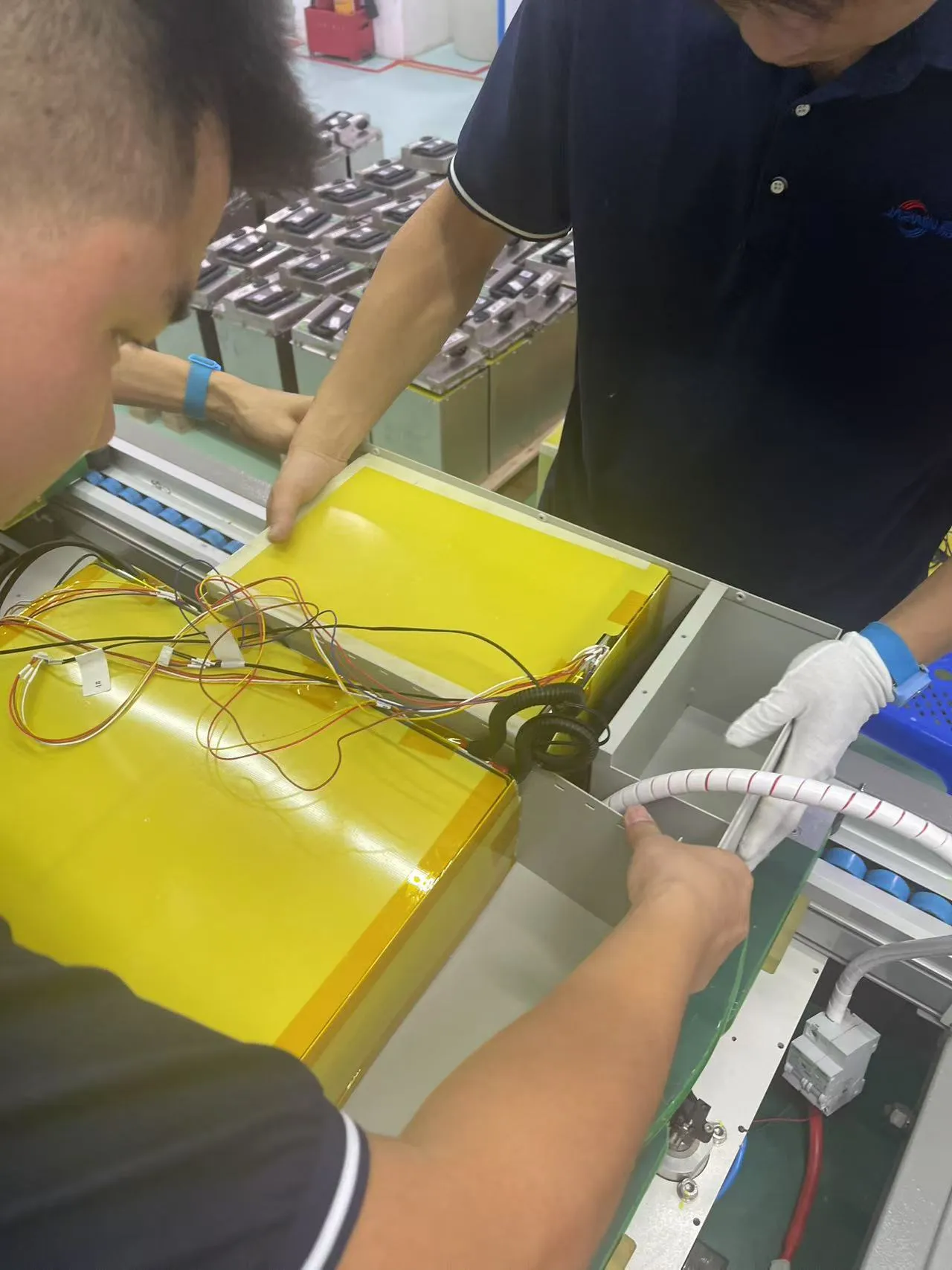

Tilt module into lower casing, secure series wiring by loosening screws incrementally, apply silicone adhesive, fix top fiberboard, then fully insert into casing.

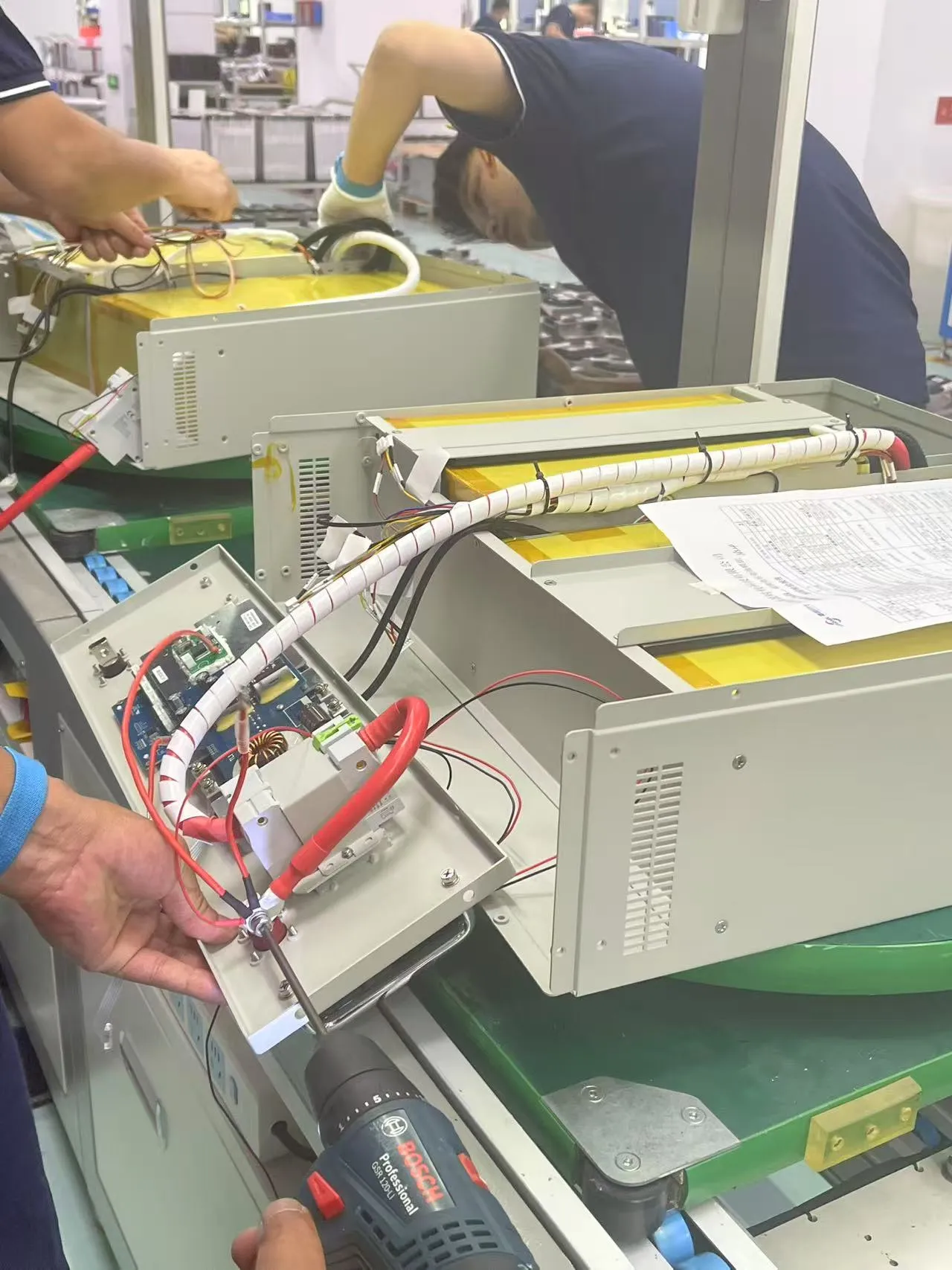

Plug sensing wire terminals into sockets and secure with adhesive.

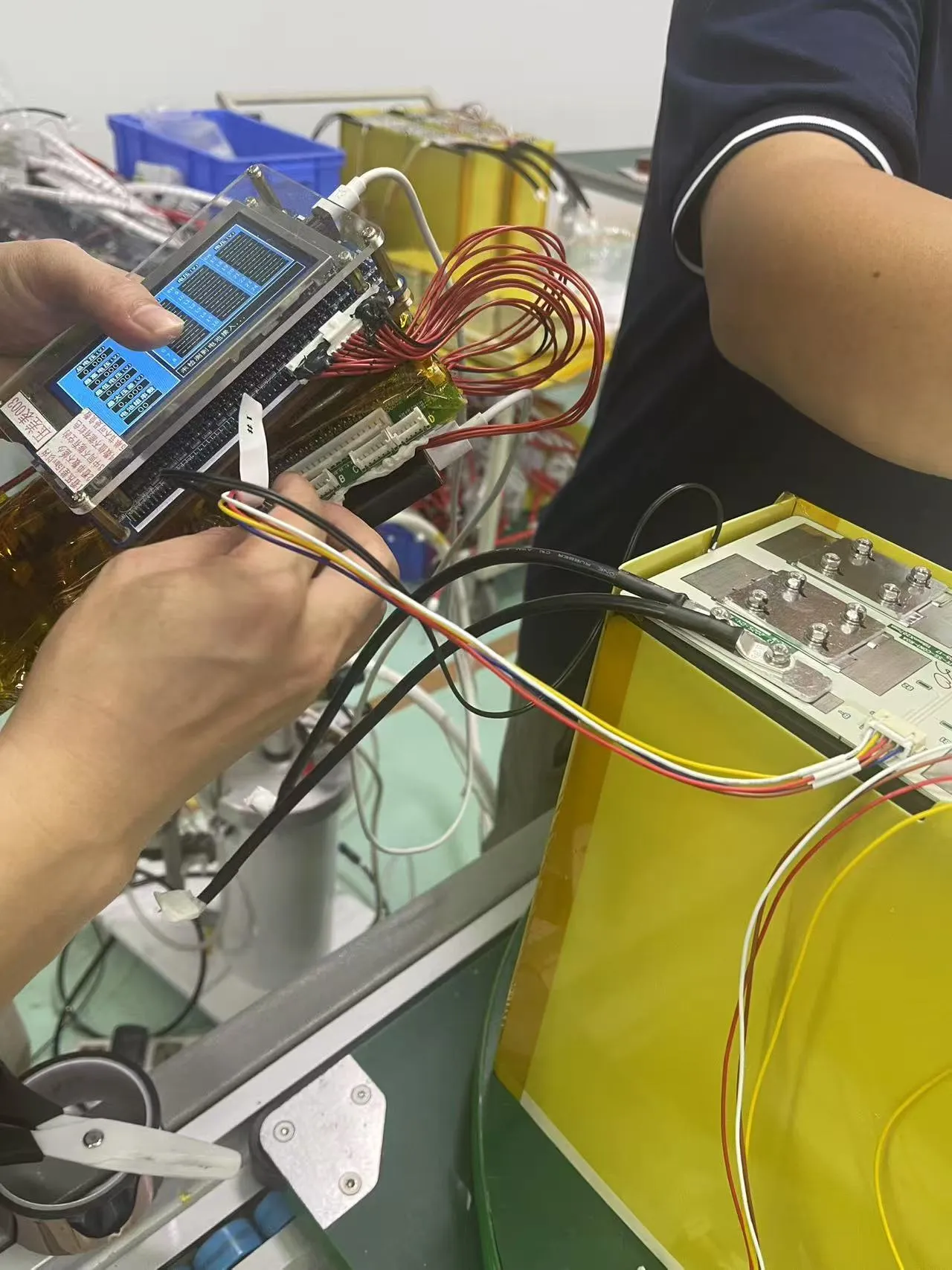

Use a voltage tester to measure the maximum and minimum cell voltage difference of the battery pack (≤15 mV), followed by open-circuit voltage, AC impedance, and charge/discharge (including overcurrent) tests.

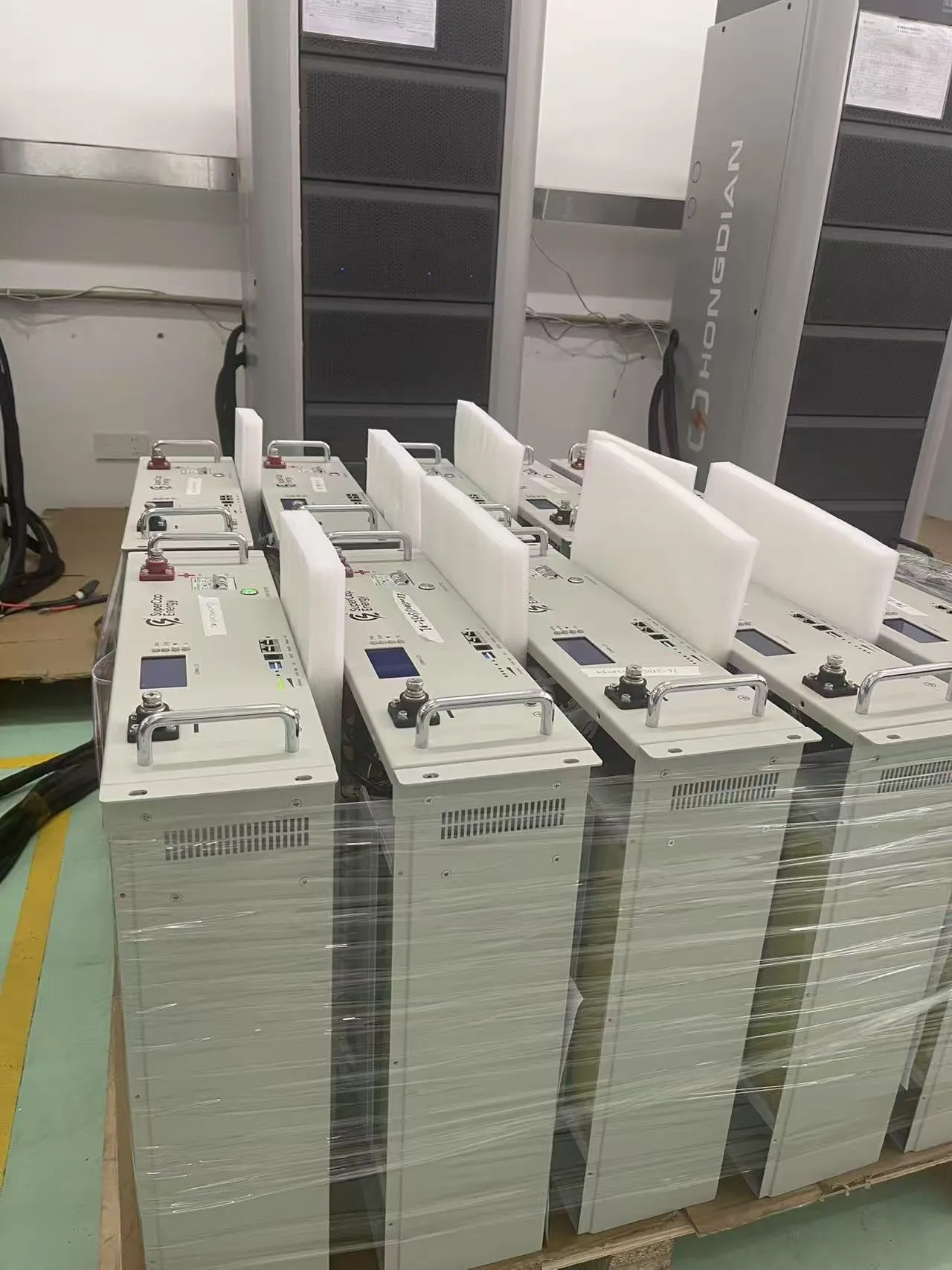

Stabilize performance through cycling and screen for defects pre-final assembly.

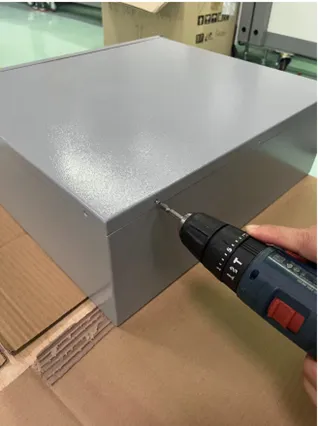

Attach top cover to casing with screws.

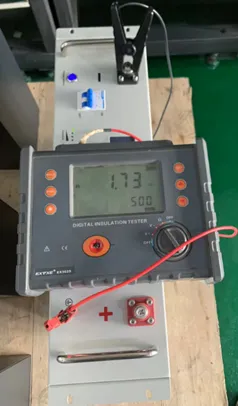

Verify communication, output voltage, temperature sensing, discharge curves, and leakage.

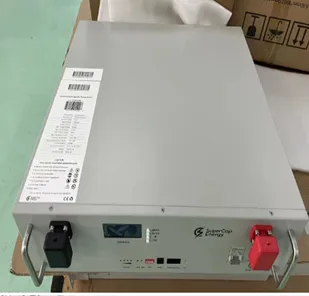

Inspect surface for flaws, check display buttons for smooth operation (no sticking).
Label units, place in foam-lined boxes, seal in PE bags with desiccant, add top foam padding.

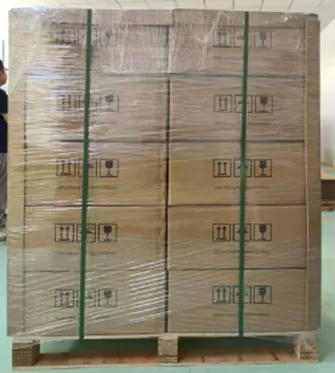

Box approved units and dispatch.
LEARN MORE DETAIL
Learn more about production details and manufacturing process
Testing Process
Fair&Certification
Certifications are herewin’s greatest strength.
Meets the needs of all markets, and the source factories are fully certified to ensure quality
GET IN TOUCH
Want to know what credentials your market needs? Contact me to send you a high resolution image
FAQs
Four Core Advantages:
-
Cost Efficiency
-
Lower material costs compared to NMC (nickel manganese cobalt) batteries, delivering higher ROI.
-
-
Extended Lifespan
-
Cycle life exceeding 4,000 cycles, reducing daily operational costs.
-
-
Enhanced Safety
-
High thermal runaway resistance (500-800°C / 932-1,472°F).
-
Passes rigorous safety tests (nail penetration, crush tests).
-
-
Policy Benefits
-
Optimizes compliance with national time-of-use (TOU) electricity pricing policies.
-
Increases arbitrage profits from peak/off-peak pricing by 30%+.
-
-
Home Energy Storage Batteries: Prioritize lifespan and safety (typically LiFePO4 chemistry).
-
Automotive Power Batteries: Optimize high energy density and fast charging (often NMC or hybrid solutions).
Professional Maintenance Guidelines
-
Charge/Discharge Practices:
-
Avoid discharging below 20% capacity.
-
Perform a full charge/discharge cycle monthly to calibrate SOC.
-
-
Environmental Requirements:
-
Ideal temperature: 15-25°C (59-77°F).
-
Install temperature control systems for extreme climates.
-
-
Routine Inspections:
-
Quarterly checks for physical damage (swelling, corrosion).
-
Review system error logs regularly.
-
-
System Compatibility:
-
Use only original inverters.
-
Prohibit mixing battery packs from different batches.
-
