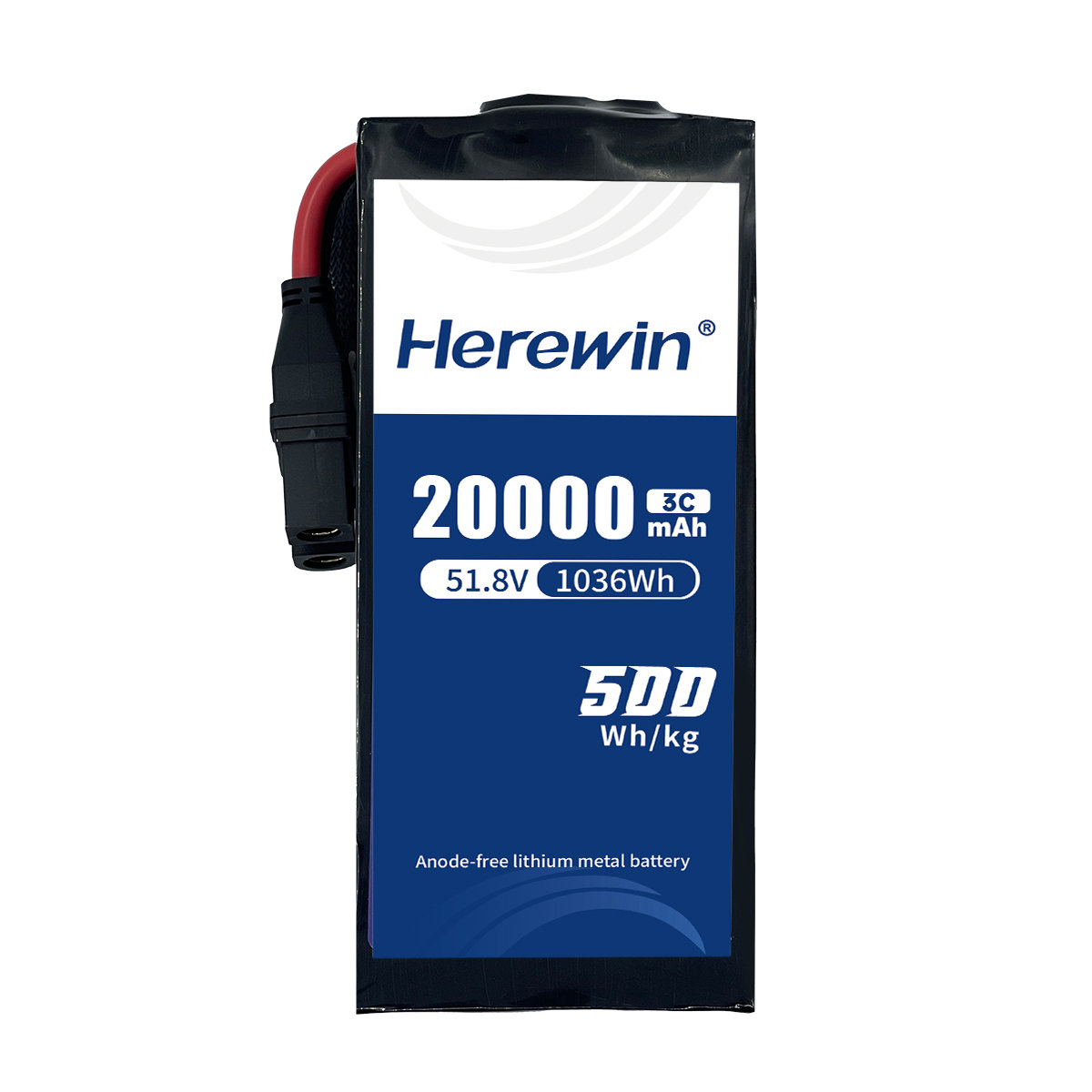

Herewin 3C 14S1P 51.8V 20000mAh Anode-Free UAV Battery

51.8V 20Ah Anode-Free UAV Battery Overview

51.8V 20Ah Anode-Free UAV Battery is designed for lightweight drone platforms that require higher voltage support, reduced battery weight, and stable low-current operation. With a 14S1P configuration, 51.8V nominal voltage, 20000mAh capacity, 3C discharge capability, and an ultra-light 2300g pack weight, this model is especially suitable for patrol drones, inspection and mapping UAVs, long-endurance aerial platforms, and small multi-rotor UAV systems.

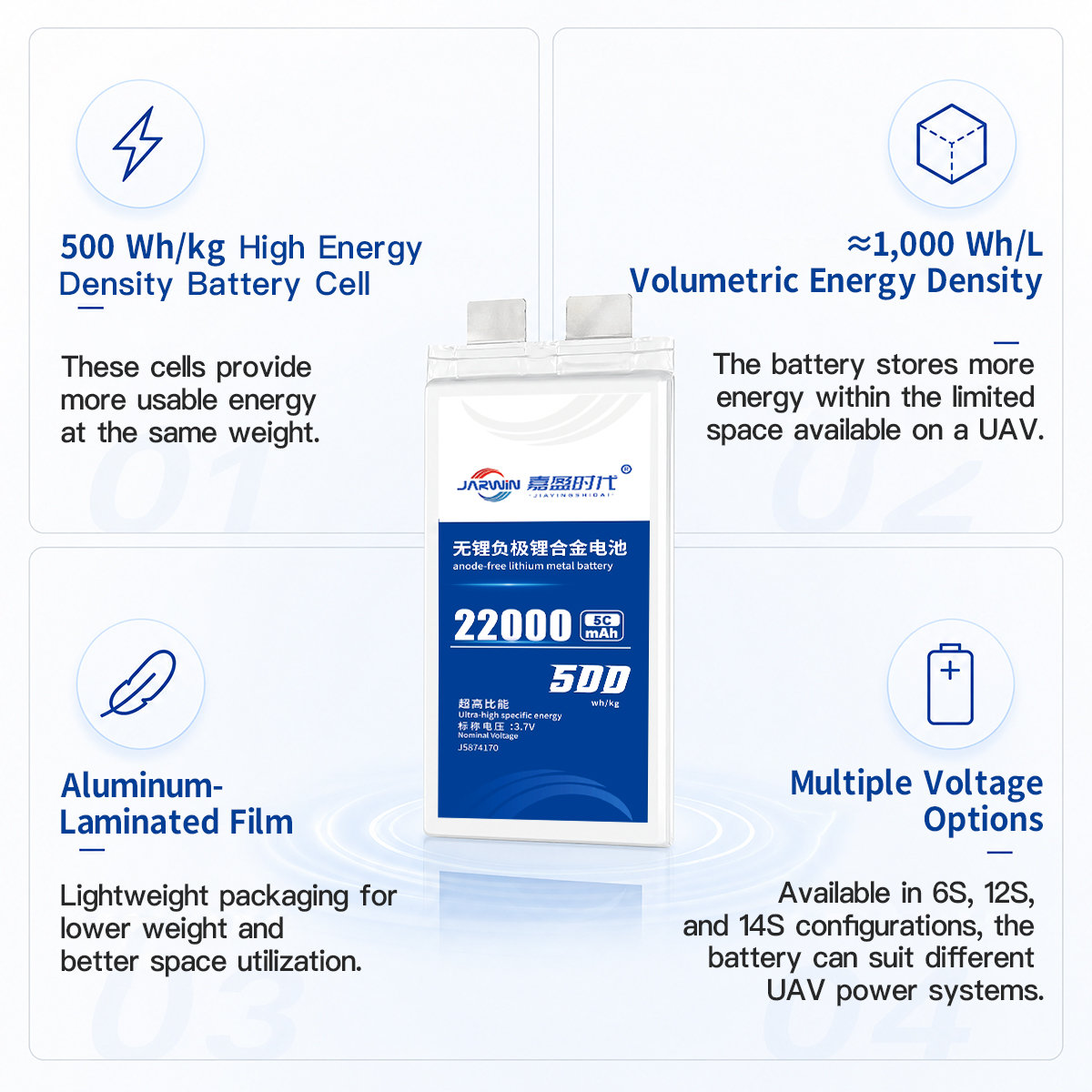

This battery uses an anode-free battery design, making it different from conventional LiPo UAV batteries and standard semi-solid drone batteries. Its main value is to provide a lightweight high-voltage power solution for special UAV applications that require longer flight time, reduced takeoff weight, and efficient energy use under stable mission conditions.

Why the 51.8V 20Ah Anode-Free UAV Battery Fits Patrol Drones

For patrol drones, flight endurance, aircraft weight, and stable voltage output are all important. Patrol missions often require steady cruising, perimeter monitoring, route observation, and long-duration aerial coverage rather than instant high-current burst output. The 51.8V 20Ah Anode-Free UAV Battery fits this requirement by combining a 14S high-voltage platform, 20000mAh capacity, and only 2300g pack weight.

Because this battery is based on a 3C discharge platform, it is best matched with low-current and endurance-focused patrol UAV systems. It should not be positioned as a battery for aggressive maneuvering, heavy payload lifting, or high-power takeoff profiles. Its strongest value is lightweight flight support for stable patrol missions.

Suitable for Inspection and Mapping UAVs

Inspection and mapping UAVs usually require stable flight, predictable power output, and longer airborne time for route scanning, terrain observation, infrastructure inspection, and aerial data collection. The 51.8V 20Ah Anode-Free UAV Battery supports these needs by offering a lightweight high-voltage battery solution for UAV platforms carrying cameras, sensors, or mapping payloads with moderate power demand.

For inspection and mapping missions, reducing battery weight can help improve aircraft balance, extend usable flight time, and improve mission efficiency. This makes the battery suitable for aerial mapping drones, inspection UAVs, lightweight survey platforms, and small multi-rotor systems that prioritize endurance and payload efficiency over high-current output.

Long-Endurance UAV Battery for Special Mission Profiles

The 51.8V 20Ah Anode-Free UAV Battery is better positioned as a special mission battery rather than a general-purpose high-cycle drone battery. Its cycle life is at least 10 cycles and its maximum charging current is 0.2C, so it is more suitable for selected mission projects, testing, validation, or special UAV applications where ultra-lightweight performance is prioritized over frequent daily battery rotation.

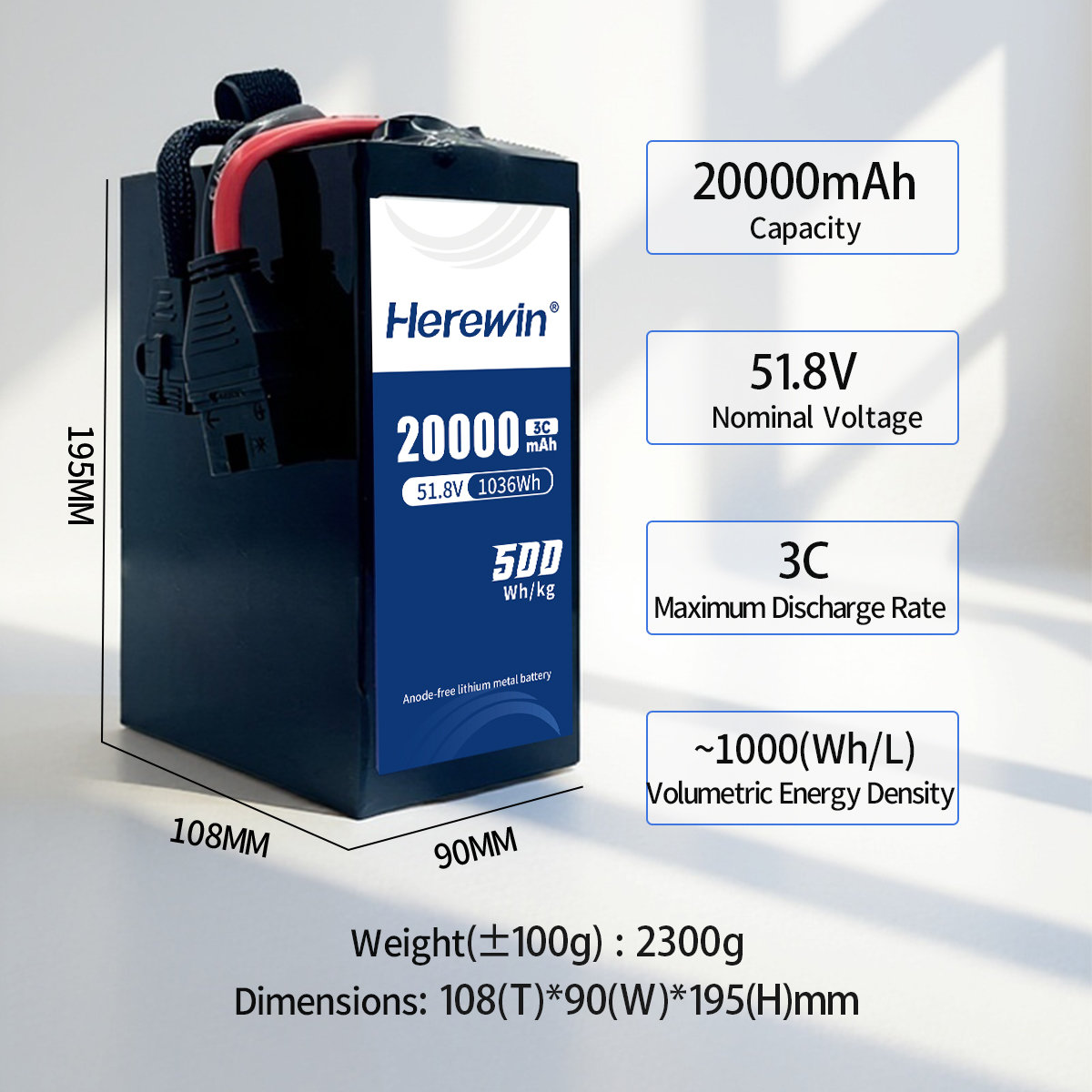

With a net weight of 2300g and dimensions of 108(T) × 90(W) × 195(H) mm, this battery offers strong integration value for lightweight 14S UAV structures. It can help drone manufacturers and system integrators reduce overall aircraft weight while maintaining a higher voltage battery platform for patrol, inspection, and mapping missions.

3C Discharge and 0.2C Charging Logic

The 3C discharge design supports stable low-current UAV operation, making it suitable for patrol, mapping, inspection, and route-based aerial missions. The 0.2C maximum charging current means the battery should be charged with a conservative charging strategy, and it is not suitable for fast-turnaround field operation or high-frequency charging cycles.

For customers evaluating this battery, the aircraft power demand, flight profile, payload weight, charging plan, and mission frequency should be confirmed before matching. This helps ensure the anode-free UAV battery is used in the right application scenario.

Integration and Connector Recommendations

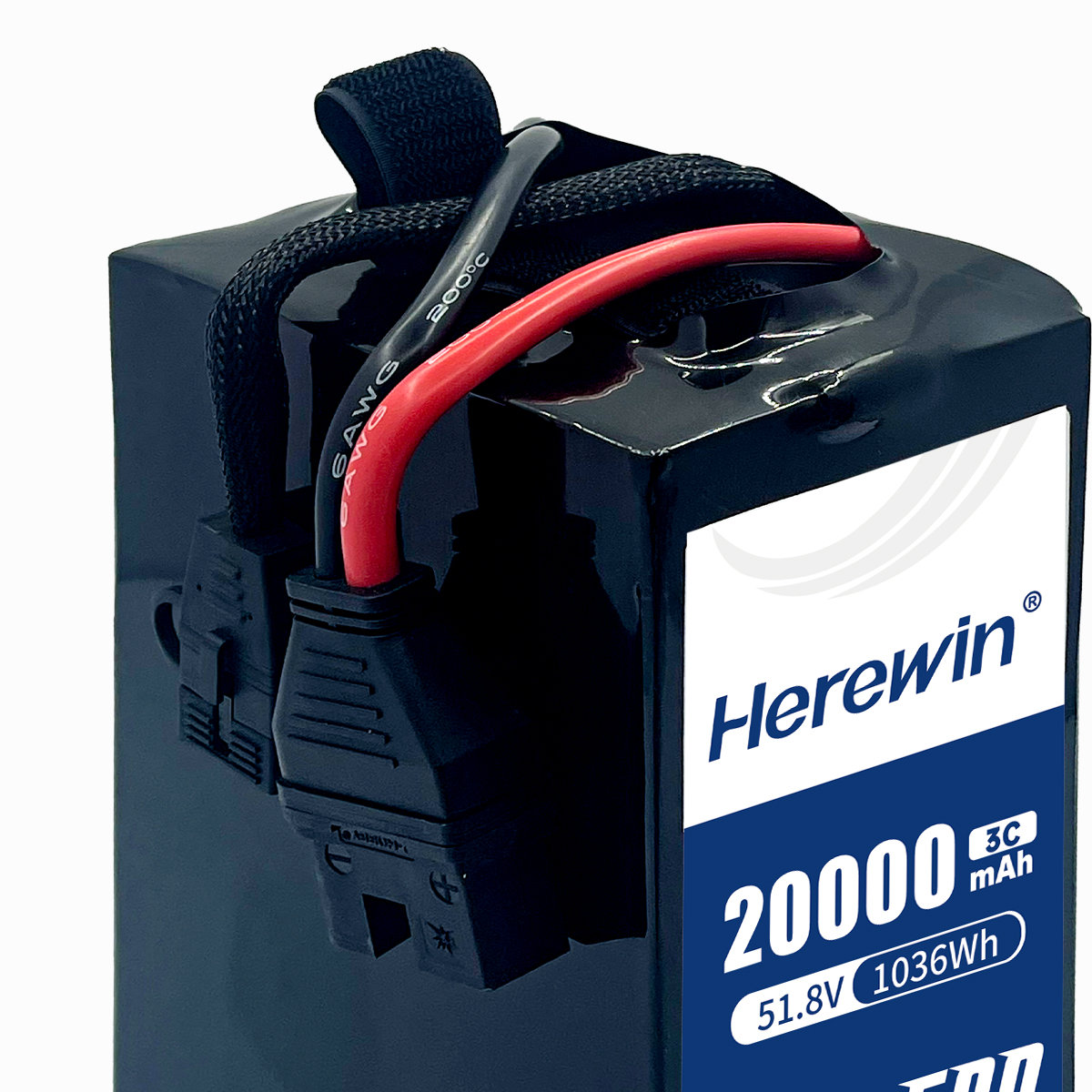

For 14S UAV platforms, connector selection should be evaluated according to the drone’s current demand and installation structure. XT90S, AS150U, QS8, and QS9 can be considered depending on the aircraft power system and customer requirements. The final connector can be customized according to project needs.
